下記、表5.35〜表5.48までは回路としての誤りはありませんが、UCF(表5.37, 5.38)との対応が取れていません。従って修正量としては、UCFの方をHDL内の信号名に変更する方が少なく簡単ですが、回路図および説明との統一を取るためにHDLの修正内容を記載します。
P.192 表5.35 FA3_VHDL.vhd
1: library IEEE;
2: use IEEE.std_logic_1164.all;
3: use IEEE.std_logic_unsigned.all;
4:
5: entity FA3_VHDL is
6:
7: port (
8: A : in std_logic_vector(2 downto 0);
9: B : in std_logic_vector(2 downto 0);
10: S : out std_logic_vector(2 downto 0);
11: CO : out std_logic);
12:
13: end FA3_VHDL;
14:
15: architecture RTL of FA3_VHDL is
16:
17: signal sum : std_logic_vector(3 downto 0);
18:
19: begin
20:
21: sum <= ('0' & A) + ('0' & B);
22: S <= sum(2 downto 0);
23: CO <= sum(3);
24:
25: end RTL;
1: library IEEE;
2: use IEEE.std_logic_1164.all;
3: use IEEE.std_logic_unsigned.all;
4:
5: entity FA3_VHDL is
6:
7: port (
8: SW0 : in std_logic;
9: SW1 : in std_logic;
10: SW2 : in std_logic;
11: SW3 : in std_logic;
12: SW4 : in std_logic;
13: SW5 : in std_logic;
14:
15: LED0 : out std_logic;
16: LED1 : out std_logic;
17: LED2 : out std_logic;
18: LED3 : out std_logic);
19:
20: end FA3_VHDL;
21:
22: architecture RTL of FA3_VHDL is
23:
24: signal a : std_logic_vector(2 downto 0);
25: signal b : std_logic_vector(2 downto 0);
26: signal s : std_logic_vector(3 downto 0);
27:
28: begin
29:
30: a <= SW2 & SW1 & SW0;
31: b <= SW5 & SW4 & SW3;
32: s <= ('0' & a) + ('0' & b);
33:
34: LED0 <= s(0);
35: LED1 <= s(1);
36: LED2 <= s(2);
37: LED3 <= s(3); -- s(3) is CO
38:
39: end RTL;
(FA3_VHDL20121003.vhd)
1: module FA3_VERILOG(CO, S, A, B);
2:
3: input [2:0] A;
4: input [2:0] B;
5: output CO;
6: output [2:0] S;
7:
8: assign {CO, S} = A + B;
9:
10: endmodule
1: module FA3_VERILOG(SW0, SW1, SW2, SW3, SW4, SW5, LED0, LED1, LED2, LED3);
2:
3: input SW0;
4: input SW1;
5: input SW2;
6: input SW3;
7: input SW4;
8: input SW5;
9: output LED0;
10: output LED1;
11: output LED2;
12: output LED3;
13:
14: assign {LED3, LED2, LED1, LED0} = {SW2, SW1, SW0} + {SW5, SW4, SW3};
15:
16: endmodule
(FA3_VERILOG20121003.v)
1: library IEEE;
2: use IEEE.std_logic_1164.all;
3: use IEEE.std_logic_unsigned.all;
4:
5: entity FS3_VHDL is
6:
7: port (
8: A : in std_logic_vector(2 downto 0);
9: B : in std_logic_vector(2 downto 0);
10: BO : out std_logic;
11: D : out std_logic_vector(2 downto 0));
12:
13: end FS3_VHDL;
14:
15: architecture RTL of FS3_VHDL is
16:
17: signal sub : std_logic_vector(3 downto 0);
18:
19: begin
20:
21: sub <= ('0' & A) - ('0' & B);
22: BO <= sub(3);
23: D <= sub(2 downto 0);
24:
25: end RTL;
1: library IEEE;
2: use IEEE.std_logic_1164.all;
3: use IEEE.std_logic_unsigned.all;
4:
5: entity FS3_VHDL is
6:
7: port (
8: SW0 : in std_logic;
9: SW1 : in std_logic;
10: SW2 : in std_logic;
11: SW3 : in std_logic;
12: SW4 : in std_logic;
13: SW5 : in std_logic;
14:
15: LED0 : out std_logic;
16: LED1 : out std_logic;
17: LED2 : out std_logic;
18: LED3 : out std_logic);
19:
20: end FS3_VHDL;
21:
22: architecture RTL of FS3_VHDL is
23:
24: signal a : std_logic_vector(2 downto 0);
25: signal b : std_logic_vector(2 downto 0);
26: signal d : std_logic_vector(3 downto 0);
27:
28: begin
29:
30: a <= SW2 & SW1 & SW0;
31: b <= SW5 & SW4 & SW3;
32: d <= ('0' & a) - ('0' & b);
33:
34: LED0 <= d(0);
35: LED1 <= d(1);
36: LED2 <= d(2);
37: LED3 <= d(3); -- d(3) is BO
38:
39: end RTL;
(FS3_VHDL20121004.vhd)
1: module FS3_VERILOG(A, B, BO, D);
2:
3: input [2:0] A;
4: input [2:0] B;
5: output BO;
6: output [2:0] D;
7:
8: assign {BO, D} = A - B;
9:
10: endmodule
1: module FS3_VERILOG(SW0, SW1, SW2, SW3, SW4, SW5, LED0, LED1, LED2, LED3);
2:
3: input SW0;
4: input SW1;
5: input SW2;
6: input SW3;
7: input SW4;
8: input SW5;
9: output LED0;
10: output LED1;
11: output LED2;
12: output LED3;
13:
14: assign {LED3, LED2, LED1, LED0} = {SW2, SW1, SW0} - {SW5, SW4, SW3};
15:
16: endmodule
(FS3_VERILOG20121004.v)
1: library IEEE;
2: use IEEE.std_logic_1164.all;
3: use IEEE.std_logic_unsigned.all;
4:
5: entity FS3_SIGN_VHDL is
6:
7: port (
8: A : in std_logic_vector(2 downto 0);
9: B : in std_logic_vector(2 downto 0);
10: BO : out std_logic;
11: D : out std_logic_vector(2 downto 0));
12:
13: end FS3_SIGN_VHDL;
14:
15: architecture RTL of FS3_SIGN_VHDL is
16:
17: signal sub : std_logic_vector(3 downto 0);
18:
19: begin
20:
21: sub <= ('0' & A) - ('0' & B);
22: BO <= sub(3);
23: D <= not sub(2 downto 0) + '1' when sub(3) = '1' else
24: sub(2 downto 0);
25:
26: end RTL;
1: library IEEE;
2: use IEEE.std_logic_1164.all;
3: use IEEE.std_logic_unsigned.all;
4:
5: entity FS3_SIGN_VHDL is
6:
7: port (
8: SW0 : in std_logic;
9: SW1 : in std_logic;
10: SW2 : in std_logic;
11: SW3 : in std_logic;
12: SW4 : in std_logic;
13: SW5 : in std_logic;
14:
15: LED0 : out std_logic;
16: LED1 : out std_logic;
17: LED2 : out std_logic;
18: LED3 : out std_logic);
19:
20: end FS3_SIGN_VHDL;
21:
22: architecture RTL of FS3_SIGN_VHDL is
23:
24: signal a : std_logic_vector(2 downto 0);
25: signal b : std_logic_vector(2 downto 0);
26: signal d : std_logic_vector(2 downto 0);
27: signal sub : std_logic_vector(3 downto 0);
28:
29: begin
30:
31: a <= SW2 & SW1 & SW0;
32: b <= SW5 & SW4 & SW3;
33: sub <= ('0' & a) - ('0' & b);
34: d <= not sub(2 downto 0) + '1' when sub(3) = '1' else
35: sub(2 downto 0);
36:
37: LED0 <= d(0);
38: LED1 <= d(1);
39: LED2 <= d(2);
40: LED3 <= sub(3); -- sub(3) is BO
41:
42: end RTL;
(FS3_SIGN_VHDL20121004.vhd)
1: module FS3_SIGN_VERILOG(A, B, BO, D);
2:
3: input [2:0] A;
4: input [2:0] B;
5: output BO;
6: output [2:0] D;
7:
8: wire [3:0] sub;
9:
10: assign sub = {1'b0, A} - {1'b0, B};
11: assign BO = sub[3];
12: assign D = sub[3] ? (~sub[2:0] + 1'b1) : sub[2:0];
13:
14: endmodule
1: module FS3_SIGN_VERILOG(SW0, SW1, SW2, SW3, SW4, SW5, LED0, LED1, LED2, LED3);
2:
3: input SW0;
4: input SW1;
5: input SW2;
6: input SW3;
7: input SW4;
8: input SW5;
9: output LED0;
10: output LED1;
11: output LED2;
12: output LED3;
13:
14: wire [3:0] sub;
15:
16: assign sub = {1'b0, SW2, SW1, SW0} - {1'b0, SW5, SW4, SW3};
17: assign LED3 = sub[3];
18: assign {LED2, LED1, LED0} = sub[3] ? (~sub[2:0] + 1'b1) : sub[2:0];
19:
20: endmodule
(FS3_SIGN_VERILOG20121004.v)1: library IEEE; 2: use IEEE.std_logic_1164.all; 3: 4: entity DFF_VHDL is 5: 6: port ( 7: SW0 : in std_logic; 8: SW1 : in std_logic; 9: LED0 : out std_logic); 10: 11: end DFF_VHDL; 12: 13: architecture RTL of DFF_VHDL is 14: 15: signal led0_reg : std_logic; 16: 17: begin 18: 19: process (SW1) 20: begin 21: if (SW1'event and SW1 = '1') then 22: led0_reg <= SW0; 23: end if; 24: end process; 25: 26: LED0 <= led0_reg; 27: 28: end RTL;
1: library IEEE; 2: use IEEE.std_logic_1164.all; 3: 4: library UNISIM; 5: use UNISIM.vcomponents.all; 6: 7: entity DFF_VHDL is 8: 9: port ( 10: SW0 : in std_logic; 11: SW1 : in std_logic; 12: LED0 : out std_logic); 13: 14: end DFF_VHDL; 15: 16: architecture RTL of DFF_VHDL is 17: 18: signal led0_reg : std_logic; 19: signal clk : std_logic; 20: 21: begin 22: 23: IBUFG0 : IBUFG 24: port map ( 25: O => clk, 26: I => SW1 27: ); 28: 29: process (clk) 30: begin 31: if (clk'event and clk = '1') then 32: led0_reg <= SW0; 33: end if; 34: end process; 35: 36: LED0 <= led0_reg; 37: 38: end RTL;(DFF_VHDL20121002.vhd)
補足： 23行目〜27行目で、IBUFGというXilinxプリミティブを直接呼び出して、SW1入力をIBUFG経由でD-FFのクロック信号(clk)となるように変更しています。これはP.221の回路図、図5.97に示す通りです。IBUFGを追加したことに伴い、内部信号として19行目でclkという信号を追加しています。また、Xilinxプリミティブを使用するためには、4行目〜5行目のlibrary UNISIM; use UNISIM.vcomponents.all; という記述が必要です。
1: module DFF_VERILOG(SW0, SW1, LED0); 2: 3: input SW0; 4: input SW1; 5: output LED0; 6: 7: reg LED0; 8: 9: always @(posedge SW1) begin 10: LED0 <= SW0; 11: end 12: 13: endmodule
1: module DFF_VERILOG(SW0, SW1, LED0); 2: 3: input SW0; 4: input SW1; 5: output LED0; 6: 7: reg LED0; 8: wire clk; 9: 10: IBUFG IBUFG0( 11: .O(clk), 12: .I(SW1) 13: ); 14: 15: always @(posedge clk) begin 16: LED0 <= SW0; 17: end 18: 19: endmodule(DFF_VERILOG20121002.v)
補足： 前述のVHDLの場合と同様に、10行目〜13行目でIBUFGを呼び出しています。またIBUFG追加に伴い、8行目で内部信号としてclkも追加しています。ただし、VHDLのときのようなライブラリの宣言はありません。
補足： 図5.110ではD-FFプリミティブを使用しているわけではないため、IBUFGを使用する必要はありません。
接続先信号の誤り（2箇所）
誤：1: library IEEE; 2: use IEEE.std_logic_1164.all; 3: 4: entity DFF2_VHDL is 5: 6: port ( 7: SW0 : in std_logic; 8: SW1 : in std_logic; 9: LED0 : out std_logic); 10: 11: end DFF2_VHDL; 12: 13: architecture RTL of DFF2_VHDL is 14: 15: signal CLK : std_logic; 16: signal D : std_logic; 17: signal S1, R1, Q1, nQ1 : std_logic; 18: signal S2, R2, Q2, nQ2 : std_logic; 19: signal S3, R3, Q, nQ : std_logic; 20: 21: begin 22: 23: CLK <= SW1; 24: D <= SW0; 25: 26: R1 <= not CLK; 27: S1 <= nQ2; 28: Q1 <= not (R1 or nQ1); 29: nQ1 <= not (S1 or Q1); 30: 31: R2 <= not D; 32: S2 <= not CLK or Q1 ; 33: Q2 <= not (R2 or nQ2); 34: nQ2 <= not (S2 or Q2); 35: 36: R3 <= nQ2; 37: S2 <= Q1; 38: Q <= not (R3 or nQ); 39: nQ <= not (S3 or Q); 40: 41: LED0 <= Q; 42: 43: end RTL;
1: library IEEE; 2: use IEEE.std_logic_1164.all; 3: 4: entity DFF2_VHDL is 5: 6: port ( 7: SW0 : in std_logic; 8: SW1 : in std_logic; 9: LED0 : out std_logic); 10: 11: end DFF2_VHDL; 12: 13: architecture RTL of DFF2_VHDL is 14: 15: signal CLK : std_logic; 16: signal D : std_logic; 17: signal S1, R1, Q1, nQ1 : std_logic; 18: signal S2, R2, Q2, nQ2 : std_logic; 19: signal S3, R3, Q, nQ : std_logic; 20: 21: begin 22: 23: CLK <= SW1; 24: D <= SW0; 25: 26: R1 <= not CLK; 27: S1 <= Q2; 28: Q1 <= not (R1 or nQ1); 29: nQ1 <= not (S1 or Q1); 30: 31: R2 <= not D; 32: S2 <= not CLK or Q1 ; 33: Q2 <= not (R2 or nQ2); 34: nQ2 <= not (S2 or Q2); 35: 36: R3 <= nQ2; 37: S3 <= Q1; 38: Q <= not (R3 or nQ); 39: nQ <= not (S3 or Q); 40: 41: LED0 <= Q; 42: 43: end RTL;(DFF2_VHDL.vhd)
接続先信号の誤り（2箇所）
誤：1: module DFF2_VERILOG(SW0, SW1, LED0); 2: 3: input SW0; 4: input SW1; 5: output LED0; 6: 7: wire CLK; 8: wire D; 9: wire S1, R1, Q1, nQ1; 10: wire S2, R2, Q2, nQ2; 11: wire S3, R3, Q, nQ; 12: 13: assign CLK = SW1; 14: assign D = SW0; 15: 16: assign R1 = ~CLK; 17: assign S1 = nQ2; 18: assign Q1 = ~(R1 | nQ1); 19: assign nQ1 = ~(S1 | Q1); 20: 21: assign R2 = ~D; 22: assign S2 = ~CLK | Q1 ; 23: assign Q2 = ~(R2 | nQ2); 24: assign nQ2 = ~(S2 | Q2); 25: 26: assign R3 = nQ2; 27: assign S2 = Q1; 28: assign Q = ~(R3 | nQ); 29: assign nQ = ~(S3 | Q); 30: 31: assign LED0 = Q; 32: 33: endmodule
1: module DFF2_VERILOG(SW0, SW1, LED0); 2: 3: input SW0; 4: input SW1; 5: output LED0; 6: 7: wire CLK; 8: wire D; 9: wire S1, R1, Q1, nQ1; 10: wire S2, R2, Q2, nQ2; 11: wire S3, R3, Q, nQ; 12: 13: assign CLK = SW1; 14: assign D = SW0; 15: 16: assign R1 = ~CLK; 17: assign S1 = Q2; 18: assign Q1 = ~(R1 | nQ1); 19: assign nQ1 = ~(S1 | Q1); 20: 21: assign R2 = ~D; 22: assign S2 = ~CLK | Q1 ; 23: assign Q2 = ~(R2 | nQ2); 24: assign nQ2 = ~(S2 | Q2); 25: 26: assign R3 = nQ2; 27: assign S3 = Q1; 28: assign Q = ~(R3 | nQ); 29: assign nQ = ~(S3 | Q); 30: 31: assign LED0 = Q; 32: 33: endmodule(DFF2_VERILOG.v)

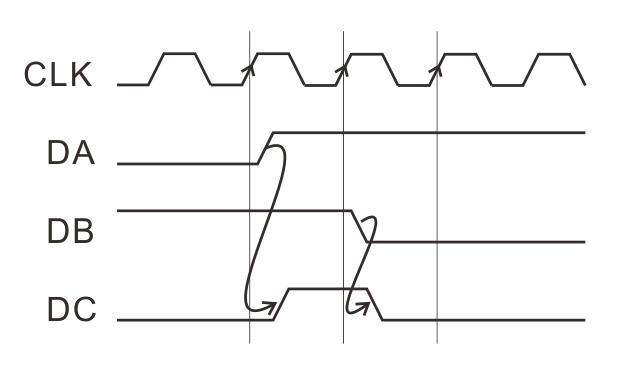

補足： 信号DBが反転しています。信号DAはD-FFで1CLK遅れて取り込まれます。従って、信号DBは信号DAが1CLK遅れたものとなります。この信号DBを反転したものと信号DAとのANDを取ったものが信号DCです。
CLK信号に付いている矢印は、その立ち上がりエッジでイベントが発生していることを示しています。「誤」の方では3つ目の立ち上がりエッジにも矢印が付いていましたが、このタイミングでは信号DA〜DCに変化は起こらないので削除しました。
また、信号DAは入力信号ですが、これはCLKの立ち上がりエッジに掛からないタイミングで変化することが前提です（詳細はP.231「セットアップ時間とホールド時間」を参照のこと）。完全同期式回路内であれば、入力信号DAは同じCLK信号で変化するフリップ・フロップの出力となるため、変化点は図のようにCLK信号の立ち上がりエッジの直後となります。
32行目のif文の「else」（35行目）の条件抜け
誤：
1: module TIMER2_VERILOG(TRG_ONE, MODE, CLK, R, POUT, POUT_ONE);
2:
3: parameter N = 8'hFF; // counter_reg を N 進カウンタとする
4: parameter BW = 8; // counter_reg のビット幅
5:
6: input TRG_ONE;
7: input MODE;
8: input CLK;
9: input R;
10: output POUT;
11: output POUT_ONE;
12:
13: wire counter_full;
14:
15: reg [BW-1:0] counter_reg;
16: reg pout_reg;
17: reg pout_one_reg;
18:
19: always @(posedge CLK) begin
20: if (R == 1'b1) begin
21: pout_reg <= 1'b0;
22: end
23: else if (counter_reg == N-1) begin
24: pout_reg <= 1'b0;
25: end
26: else if (TRG_ONE == 1'b1) begin
27: pout_reg <= 1'b1;
28: end
29: end
30:
31: always @(posedge CLK) begin
32: if (R == 1'b1 || counter_reg == N-1 || ((TRG_ONE == 1'b1) && (MODE =
= 1'b1))) begin
33: counter_reg <= {BW{1'b0}};
34: end
35: else begin
36: counter_reg <= counter_reg + 1'b1;
37: end
38: end
39:
40: assign counter_full = (counter_reg == N-1) ? 1'b1 : 1'b0;
41:
42: always @(posedge CLK) begin
43: if (R == 1'b1 || TRG_ONE == 1'b1) begin
44: pout_one_reg <= 1'b0;
45: end
46: else begin
47: pout_one_reg <= counter_full;
48: end
49: end
50:
51: assign POUT = pout_reg;
52: assign POUT_ONE = pout_one_reg;
53:
54: endmodule
1: module TIMER2_VERILOG(TRG_ONE, MODE, CLK, R, POUT, POUT_ONE);
2:
3: parameter N = 8'hFF; // counter_reg を N 進カウンタとする
4: parameter BW = 8; // counter_reg のビット幅
5:
6: input TRG_ONE;
7: input MODE;
8: input CLK;
9: input R;
10: output POUT;
11: output POUT_ONE;
12:
13: wire counter_full;
14:
15: reg [BW-1:0] counter_reg;
16: reg pout_reg;
17: reg pout_one_reg;
18:
19: always @(posedge CLK) begin
20: if (R == 1'b1) begin
21: pout_reg <= 1'b0;
22: end
23: else if (counter_reg == N-1) begin
24: pout_reg <= 1'b0;
25: end
26: else if (TRG_ONE == 1'b1) begin
27: pout_reg <= 1'b1;
28: end
29: end
30:
31: always @(posedge CLK) begin
32: if (R == 1'b1 || counter_reg == N-1 || ((TRG_ONE == 1'b1) && (MODE == 1'b1))) begin
33: counter_reg <= {BW{1'b0}};
34: end
35: else if (pout_reg == 1'b1) begin
36: counter_reg <= counter_reg + 1'b1;
37: end
38: end
39:
40: assign counter_full = (counter_reg == N-1) ? 1'b1 : 1'b0;
41:
42: always @(posedge CLK) begin
43: if (R == 1'b1 || TRG_ONE == 1'b1) begin
44: pout_one_reg <= 1'b0;
45: end
46: else begin
47: pout_one_reg <= counter_full;
48: end
49: end
50:
51: assign POUT = pout_reg;
52: assign POUT_ONE = pout_one_reg;
53:
54: endmodule
(TIMER2_VERILOG.v)信号名の誤り。STATE0〜3、POUT_ONE0〜3、およびphase0_wire〜phase3_wireは、正しくはSTATE1〜4、POUT_ONE1〜4、およびphase1_wire〜phase4_wire。
誤：1: library IEEE; 2: use IEEE.std_logic_1164.all; 3: 4: entity SBASE_STATE4_VHDL is 5: 6: port ( 7: CLK : in std_logic; 8: R : in std_logic; 9: TRG_ONE : in std_logic; 10: RDY_IN : in std_logic; 11: RDY : out std_logic; 12: STATE0 : out std_logic; 13: STATE1 : out std_logic; 14: STATE2 : out std_logic; 15: STATE3 : out std_logic; 16: POUT_ONE0 : out std_logic; 17: POUT_ONE1 : out std_logic; 18: POUT_ONE2 : out std_logic; 19: POUT_ONE3 : out std_logic); 20: 21: end SBASE_STATE4_VHDL; 22: 23: architecture RTL of SBASE_STATE4_VHDL is 24: 25: component SBASE_PGCB2_VHDL 26: port ( 27: CLK : in std_logic; 28: R : in std_logic; 29: TRG_ONE : in std_logic; 30: RDY_IN : in std_logic; 31: FB : in std_logic; 32: Q0 : out std_logic; 33: Q1 : out std_logic; 34: POUT_ONE : out std_logic; 35: RDY : out std_logic); 36: end component; 37: 38: signal FB : std_logic; 39: signal q0 : std_logic; 40: signal q1 : std_logic; 41: signal e : std_logic; 42: signal pout_one : std_logic; 43: signal rdy_wire : std_logic; 44: signal phase0_wire : std_logic; 45: signal phase1_wire : std_logic; 46: signal phase2_wire : std_logic; 47: signal phase3_wire : std_logic; 48: 49: begin 50: 51: SBASE_PGCB2_VHDL_inst : SBASE_PGCB2_VHDL port map ( 52: CLK => CLK, 53: R => R, 54: TRG_ONE => TRG_ONE, 55: RDY_IN => RDY_IN, 56: FB => FB, 57: Q0 => q0, 58: Q1 => q1, 59: POUT_ONE => pout_one, 60: RDY => rdy_wire); 61: 62: FB <= q0 and q1; 63: RDY <= rdy_wire; 64: 65: phase0_wire <= (not rdy_wire) and (not R) and (not q1) and (not q0); 66: phase1_wire <= (not rdy_wire) and (not R) and (not q1) and ( q0); 67: phase2_wire <= (not rdy_wire) and (not R) and ( q1) and (not q0); 68: phase3_wire <= (not rdy_wire) and (not R) and ( q1) and ( q0); 69: 70: STATE0 <= phase0_wire; 71: STATE1 <= phase1_wire; 72: STATE2 <= phase2_wire; 73: STATE3 <= phase3_wire; 74: 75: POUT_ONE0 <= pout_one and phase0_wire; 76: POUT_ONE1 <= pout_one and phase1_wire; 77: POUT_ONE2 <= pout_one and phase2_wire; 78: POUT_ONE3 <= pout_one and phase3_wire; 79: 80: end RTL;
1: library IEEE; 2: use IEEE.std_logic_1164.all; 3: 4: entity SBASE_STATE4_VHDL is 5: 6: port ( 7: CLK : in std_logic; 8: R : in std_logic; 9: TRG_ONE : in std_logic; 10: RDY_IN : in std_logic; 11: RDY : out std_logic; 12: STATE1 : out std_logic; 13: STATE2 : out std_logic; 14: STATE3 : out std_logic; 15: STATE4 : out std_logic; 16: POUT_ONE1 : out std_logic; 17: POUT_ONE2 : out std_logic; 18: POUT_ONE3 : out std_logic; 19: POUT_ONE4 : out std_logic); 20: 21: end SBASE_STATE4_VHDL; 22: 23: architecture RTL of SBASE_STATE4_VHDL is 24: 25: component SBASE_PGCB2_VHDL 26: port ( 27: CLK : in std_logic; 28: R : in std_logic; 29: TRG_ONE : in std_logic; 30: RDY_IN : in std_logic; 31: FB : in std_logic; 32: Q0 : out std_logic; 33: Q1 : out std_logic; 34: POUT_ONE : out std_logic; 35: RDY : out std_logic); 36: end component; 37: 38: signal FB : std_logic; 39: signal q0 : std_logic; 40: signal q1 : std_logic; 41: signal e : std_logic; 42: signal pout_one : std_logic; 43: signal rdy_wire : std_logic; 44: signal phase1_wire : std_logic; 45: signal phase2_wire : std_logic; 46: signal phase3_wire : std_logic; 47: signal phase4_wire : std_logic; 48: 49: begin 50: 51: SBASE_PGCB2_VHDL_inst : SBASE_PGCB2_VHDL port map ( 52: CLK => CLK, 53: R => R, 54: TRG_ONE => TRG_ONE, 55: RDY_IN => RDY_IN, 56: FB => FB, 57: Q0 => q0, 58: Q1 => q1, 59: POUT_ONE => pout_one, 60: RDY => rdy_wire); 61: 62: FB <= q0 and q1; 63: RDY <= rdy_wire; 64: 65: phase1_wire <= (not rdy_wire) and (not R) and (not q1) and (not q0); 66: phase2_wire <= (not rdy_wire) and (not R) and (not q1) and ( q0); 67: phase3_wire <= (not rdy_wire) and (not R) and ( q1) and (not q0); 68: phase4_wire <= (not rdy_wire) and (not R) and ( q1) and ( q0); 69: 70: STATE1 <= phase1_wire; 71: STATE2 <= phase2_wire; 72: STATE3 <= phase3_wire; 73: STATE4 <= phase4_wire; 74: 75: POUT_ONE1 <= pout_one and phase1_wire; 76: POUT_ONE2 <= pout_one and phase2_wire; 77: POUT_ONE3 <= pout_one and phase3_wire; 78: POUT_ONE4 <= pout_one and phase4_wire; 79: 80: end RTL;(SBASE_STATE4_VHDL.vhd)
信号名の誤り。STATE0〜3、およびPOUT_ONE0〜3は、正しくはSTATE1〜4、およびPOUT_ONE1〜4。
誤：1: module SBASE_STATE4_VERILOG(CLK, R, TRG_ONE, RDY_IN, RDY, 2: STATE0, STATE1, STATE2, STATE3, 3: POUT_ONE0, POUT_ONE1, POUT_ONE2, POUT_ONE3); 4: 5: input CLK; 6: input R; 7: input TRG_ONE; 8: input RDY_IN; 9: 10: output RDY; 11: output STATE0; 12: output STATE1; 13: output STATE2; 14: output STATE3; 15: output POUT_ONE0; 16: output POUT_ONE1; 17: output POUT_ONE2; 18: output POUT_ONE3; 19: 20: wire q0; 21: wire q1; 22: wire pout_one; 23: 24: SBASE_PGCB2_VERILOG 25: SBASE_PGCB2_VERILOG(.CLK(CLK), 26: .R(R), 27: .TRG_ONE(TRG_ONE), 28: .RDY_IN(RDY_IN), 29: .FB(q0 & q1), 30: .Q0(q0), 31: .Q1(q1), 32: .POUT_ONE(pout_one), 33: .RDY(RDY)); 34: 35: assign STATE0 = (~RDY & ~R) & ~q1 & ~q0; 36: assign STATE1 = (~RDY & ~R) & ~q1 & q0; 37: assign STATE2 = (~RDY & ~R) & q1 & ~q0; 38: assign STATE3 = (~RDY & ~R) & q1 & q0; 39: 40: assign POUT_ONE0 = pout_one & STATE0; 41: assign POUT_ONE1 = pout_one & STATE1; 42: assign POUT_ONE2 = pout_one & STATE2; 43: assign POUT_ONE3 = pout_one & STATE3; 44: 45: endmodule
1: module SBASE_STATE4_VERILOG(CLK, R, TRG_ONE, RDY_IN, RDY, 2: STATE1, STATE2, STATE3, STATE4, 3: POUT_ONE1, POUT_ONE2, POUT_ONE3, POUT_ONE4); 4: 5: input CLK; 6: input R; 7: input TRG_ONE; 8: input RDY_IN; 9: 10: output RDY; 11: output STATE1; 12: output STATE2; 13: output STATE3; 14: output STATE4; 15: output POUT_ONE1; 16: output POUT_ONE2; 17: output POUT_ONE3; 18: output POUT_ONE4; 19: 20: wire q0; 21: wire q1; 22: wire pout_one; 23: 24: SBASE_PGCB2_VERILOG 25: SBASE_PGCB2_VERILOG(.CLK(CLK), 26: .R(R), 27: .TRG_ONE(TRG_ONE), 28: .RDY_IN(RDY_IN), 29: .FB(q0 & q1), 30: .Q0(q0), 31: .Q1(q1), 32: .POUT_ONE(pout_one), 33: .RDY(RDY)); 34: 35: assign STATE1 = (~RDY & ~R) & ~q1 & ~q0; 36: assign STATE2 = (~RDY & ~R) & ~q1 & q0; 37: assign STATE3 = (~RDY & ~R) & q1 & ~q0; 38: assign STATE4 = (~RDY & ~R) & q1 & q0; 39: 40: assign POUT_ONE1 = pout_one & STATE1; 41: assign POUT_ONE2 = pout_one & STATE2; 42: assign POUT_ONE3 = pout_one & STATE3; 43: assign POUT_ONE4 = pout_one & STATE4; 44: 45: endmodule(SBASE_STATE4_VERILOG.v)
SBASE_STATE4の出力信号名がSTATE0〜3およびPOUT_ONE0〜3となっているが、これはSTATE1〜4およびPOUT_ONE1〜4の誤り。正しくは下図の通り。
(SEQ04_SCH.pdf)信号名の誤り。STATE0〜3、POUT_ONE0〜3、およびpout_one(0)〜(3)は、正しくはSTATE1〜4、POUT_ONE1〜4、およびpout_one(1)〜(4)。
誤：1: library IEEE; 2: use IEEE.std_logic_1164.all; 3: 4: entity SEQ04_VHDL is 5: 6: port ( 7: CLK : in std_logic; 8: PSW0 : in std_logic; 9: LED0 : out std_logic; 10: LED1 : out std_logic; 11: LED2 : out std_logic; 12: LED3 : out std_logic); 13: 14: end SEQ04_VHDL; 15: 16: architecture RTL of SEQ04_VHDL is 17: 18: component SBASE_STATE4_VHDL 19: port ( 20: CLK : in std_logic; 21: R : in std_logic; 22: TRG_ONE : in std_logic; 23: RDY_IN : in std_logic; 24: RDY : out std_logic; 25: STATE0 : out std_logic; 26: STATE1 : out std_logic; 27: STATE2 : out std_logic; 28: STATE3 : out std_logic; 29: POUT_ONE0 : out std_logic; 30: POUT_ONE1 : out std_logic; 31: POUT_ONE2 : out std_logic; 32: POUT_ONE3 : out std_logic); 33: end component; 34: 35: component SBASE_TIMER_CB24RM_VHDL 36: port ( 37: CLK : in std_logic; 38: R : in std_logic; 39: TRG_ONE : in std_logic; 40: MODE : in std_logic; 41: POUT : out std_logic; 42: POUT_ONE : out std_logic); 43: end component; 44: 45: signal rdy_in : std_logic; 46: signal pout : std_logic; 47: signal pout_one : std_logic_vector(3 downto 0); 48: signal trg_one : std_logic; 49: 50: begin 51: 52: SBASE_STATE4_VHDL_inst : 53: SBASE_STATE4_VHDL port map ( 54: CLK => CLK, 55: R => '0', 56: TRG_ONE => PSW0, 57: RDY_IN => rdy_in, 58: RDY => open, 59: STATE0 => LED0, 60: STATE1 => LED1, 61: STATE2 => LED2, 62: STATE3 => LED3, 63: POUT_ONE0 => pout_one(0), 64: POUT_ONE1 => pout_one(1), 65: POUT_ONE2 => pout_one(2), 66: POUT_ONE3 => pout_one(3)); 67: 68: SBASE_TIMER_CB24RM_VHDL_inst : 69: SBASE_TIMER_CB24RM_VHDL port map ( 70: CLK => CLK, 71: R => '0', 72: TRG_ONE => trg_one, 73: MODE => '0', 74: POUT => pout, 75: POUT_ONE => open); 76: 77: rdy_in <= not pout; 78: trg_one <= pout_one(0) or pout_one(1) or pout_one(2) or pout_one(3); 79: 80: end RTL;
1: library IEEE; 2: use IEEE.std_logic_1164.all; 3: 4: entity SEQ04_VHDL is 5: 6: port ( 7: CLK : in std_logic; 8: PSW0 : in std_logic; 9: LED0 : out std_logic; 10: LED1 : out std_logic; 11: LED2 : out std_logic; 12: LED3 : out std_logic); 13: 14: end SEQ04_VHDL; 15: 16: architecture RTL of SEQ04_VHDL is 17: 18: component SBASE_STATE4_VHDL 19: port ( 20: CLK : in std_logic; 21: R : in std_logic; 22: TRG_ONE : in std_logic; 23: RDY_IN : in std_logic; 24: RDY : out std_logic; 25: STATE1 : out std_logic; 26: STATE2 : out std_logic; 27: STATE3 : out std_logic; 28: STATE4 : out std_logic; 29: POUT_ONE1 : out std_logic; 30: POUT_ONE2 : out std_logic; 31: POUT_ONE3 : out std_logic; 32: POUT_ONE4 : out std_logic); 33: end component; 34: 35: component SBASE_TIMER_CB24RM_VHDL 36: port ( 37: CLK : in std_logic; 38: R : in std_logic; 39: TRG_ONE : in std_logic; 40: MODE : in std_logic; 41: POUT : out std_logic; 42: POUT_ONE : out std_logic); 43: end component; 44: 45: signal rdy_in : std_logic; 46: signal pout : std_logic; 47: signal pout_one : std_logic_vector(4 downto 1); 48: signal trg_one : std_logic; 49: 50: begin 51: 52: SBASE_STATE4_VHDL_inst : 53: SBASE_STATE4_VHDL port map ( 54: CLK => CLK, 55: R => '0', 56: TRG_ONE => PSW0, 57: RDY_IN => rdy_in, 58: RDY => open, 59: STATE1 => LED0, 60: STATE2 => LED1, 61: STATE3 => LED2, 62: STATE4 => LED3, 63: POUT_ONE1 => pout_one(1), 64: POUT_ONE2 => pout_one(2), 65: POUT_ONE3 => pout_one(3), 66: POUT_ONE4 => pout_one(4)); 67: 68: SBASE_TIMER_CB24RM_VHDL_inst : 69: SBASE_TIMER_CB24RM_VHDL port map ( 70: CLK => CLK, 71: R => '0', 72: TRG_ONE => trg_one, 73: MODE => '0', 74: POUT => pout, 75: POUT_ONE => open); 76: 77: rdy_in <= not pout; 78: trg_one <= pout_one(1) or pout_one(2) or pout_one(3) or pout_one(4); 79: 80: end RTL;(SEQ04_VHDL.vhd)
信号名の誤り。STATE0〜3、POUT_ONE0〜3、およびpout_one[0]〜[3]は、正しくはSTATE1〜4、POUT_ONE1〜4、およびpout_one[1]〜[4]。
誤：1: module SEQ04_VERILOG(CLK, PSW0, LED0, LED1, LED2, LED3); 2: 3: input CLK; 4: input PSW0; 5: output LED0; 6: output LED1; 7: output LED2; 8: output LED3; 9: 10: wire pout; 11: wire [3:0] pout_one; 12: 13: SBASE_STATE4_VERILOG 14: SBASE_STATE4_VERILOG(.CLK(CLK), 15: .R(1'b0), 16: .TRG_ONE(PSW0), 17: .RDY_IN(~pout), 18: .RDY(), 19: .STATE0(LED0), 20: .STATE1(LED1), 21: .STATE2(LED2), 22: .STATE3(LED3), 23: .POUT_ONE0(pout_one[0]), 24: .POUT_ONE1(pout_one[1]), 25: .POUT_ONE2(pout_one[2]), 26: .POUT_ONE3(pout_one[3])); 27: 28: SBASE_TIMER_CB24RM_VERILOG 29: SBASE_TIMER_CB24RM_VERILOG(.CLK(CLK), 30: .R(1'b0), 31: .TRG_ONE(|pout_one), 32: .MODE(1'b0), 33: .POUT(pout), 34: .POUT_ONE()); 35: 36: endmodule
1: module SEQ04_VERILOG(CLK, PSW0, LED0, LED1, LED2, LED3); 2: 3: input CLK; 4: input PSW0; 5: output LED0; 6: output LED1; 7: output LED2; 8: output LED3; 9: 10: wire pout; 11: wire [4:1] pout_one; 12: 13: SBASE_STATE4_VERILOG 14: SBASE_STATE4_VERILOG(.CLK(CLK), 15: .R(1'b0), 16: .TRG_ONE(PSW0), 17: .RDY_IN(~pout), 18: .RDY(), 19: .STATE1(LED0), 20: .STATE2(LED1), 21: .STATE3(LED2), 22: .STATE4(LED3), 23: .POUT_ONE1(pout_one[1]), 24: .POUT_ONE2(pout_one[2]), 25: .POUT_ONE3(pout_one[3]), 26: .POUT_ONE4(pout_one[4])); 27: 28: SBASE_TIMER_CB24RM_VERILOG 29: SBASE_TIMER_CB24RM_VERILOG(.CLK(CLK), 30: .R(1'b0), 31: .TRG_ONE(|pout_one), 32: .MODE(1'b0), 33: .POUT(pout), 34: .POUT_ONE()); 35: 36: endmodule(SEQ04_VERILOG.v)
補足： ここでは2進数の一般式を挙げずに、単に 「2進数1011の1の補数」は各桁の値を反転して「0100b」（通常は頭の'0'は省略）となります。 とした方がわかり易かったかもしれません。
